Pre-Pak Well Screens

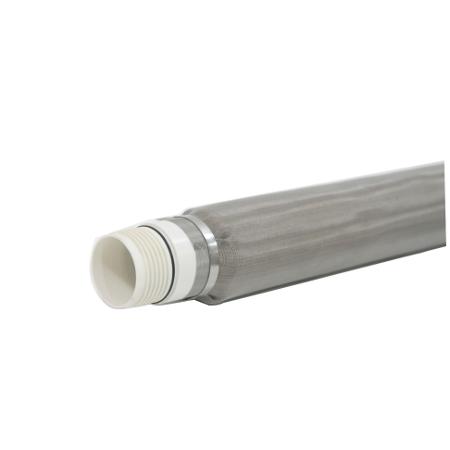

Pre-Pak Well Screens for use inside direct push casing, installed in open bore holes or used as liners in larger diameter wells. The screens are Schedule 40 PVC .010 slot, ASTM Flush Threaded with an O-ring seal for assembly of longer screen lengths or flush threaded casing. The filter pack of clean, fine grade silica sand is secured to the PVC screen with an overlay of 45 stainless steel mesh that holds the sand securely and uniformly in place. These Pre-Paks are unique because they have a PVC Sleeve under the clamp at each end which helps keep the pipe centered and the sand more uniform throughout the filter pack for a more even flow and obtaining maximum results. This also alleviates gaps between the sand and the screen.
They are currently available in 5’ lengths. Custom lengths can be made upon request.
Box Weight
Part Number Description ID / OD Qty (lbs)*
PP1.40X1.05X60 ¾" X 5’ Pre-Pak Well Screen .81 / 1.4 3.8 each
PP1.40X1.05X60X ¾" X 5’ Pre-Pak Well Screen (Box) .81 / 1.4 15 57
Fits Casing: 2" - 2 ¼"; Net Open Area: (in2 / ft): 0.991
___________________________________________________________________________________________
PP1.70X1.31X60 1" X 5’ Pre-Pak Well Screen 1.033 / 1.7 5.1 each
PP1.70X1.31X60X 1" X 5’ Pre-Pak Well Screen (Box) 1.033 / 1.7 11 56
Fits Casing: 3 ¼" – 3 ½"; Net Open Area: (in2 / ft): 1.156
_____________________________________________________________________________________________
PP2.40X1.90X60 1 ½" X 5’ Pre-Pak Well Screen 1.592 / 2.4 9 each
PP2.40X1.90X60X 1 ½" X 5’ Pre-Pak Well Screen (Box) 1.592 / 2.4 6 54
Fits Casing: 3 ¼" – 3 ½"; Net Open Area: (in2 / ft): 2.806
_____________________________________________________________________________________________
PP2.80X2.375X60 2" x 5’ Pre-Pak Well Screen 2.049 / 2.8 10 each
PP2.80X2.375X60X 2" x 5’ Pre-Pak Well Screen (Box) 2.049 / 2.8 4 40
Fits Casing: 3 ½"; Net Open Area: (in2 / ft): 3.520
_______________________________________________________________________________________________
Specifications
- Schedule 40 PVC Screen, .010 Slot
- 20 x 40 Silica Sand, NSF/ANSI Standard 061
- 45 Mesh Stainless Steel Screen
* Weight includes box and packaging
|
